     PWM Controller, Current Mode, for Offline Power Supplies Featuring Peak Power Excursion

    制造商:ON

    中文数据手册

    产品信息

    The NCP1255 is a highly integrated PWM controller capable of delivering a rugged and high performance offline power supply in a SOIC-8 package. With a supply range up to 35 V, the controller hosts a jittered 65-kHz switching circuitry operated in peak current mode control. When the power on the secondary side starts to decrease, the controller automatically folds back its switching frequency down to a minimum level of 26 kHz. As the power further goes down, the part enters skip cycle while freezing the peak current setpoint.
    To help build rugged converters, the controller features several key protective features: a brown-out, a non-dissipative Over Power Protection for a constant maximum output current regardless of the input voltage, two latched over voltage protection inputs 0 either through a dedicated pin or via the Vcc input - and finally, the possibility to externally adjust an auto-recovery timer duration.
    The controller architecture is arranged to authorize a transient peak power excursion when the peak current hits the limit. At this point, the switching frequency is increased from 65 kHz to 130 kHz until the peak requirement disappears. The timer duration is then modulated as the converter crosses a peak power excursion mode (long) or undergoes a short circuit (short).
    • 65kHz operating frequency with 130kHz Frequency Excursion
    • Internal and Adjustable Over Power Protection (OPP) Circuit
    • Adjustable Brown-Out Protection
    • Frequency Foldback down to 26 kHz and Skip-cycle in light load conditions
    • Adjustable Timer-based Auto-recovery Overload/Short-circuit protection with 100% to 25% timer reduction for short-circuit faults
    • Frequency Jittering in Normal and Frequency Foldback Modes
    • Latch Input
    • Double Vcc hiccup in fault mode

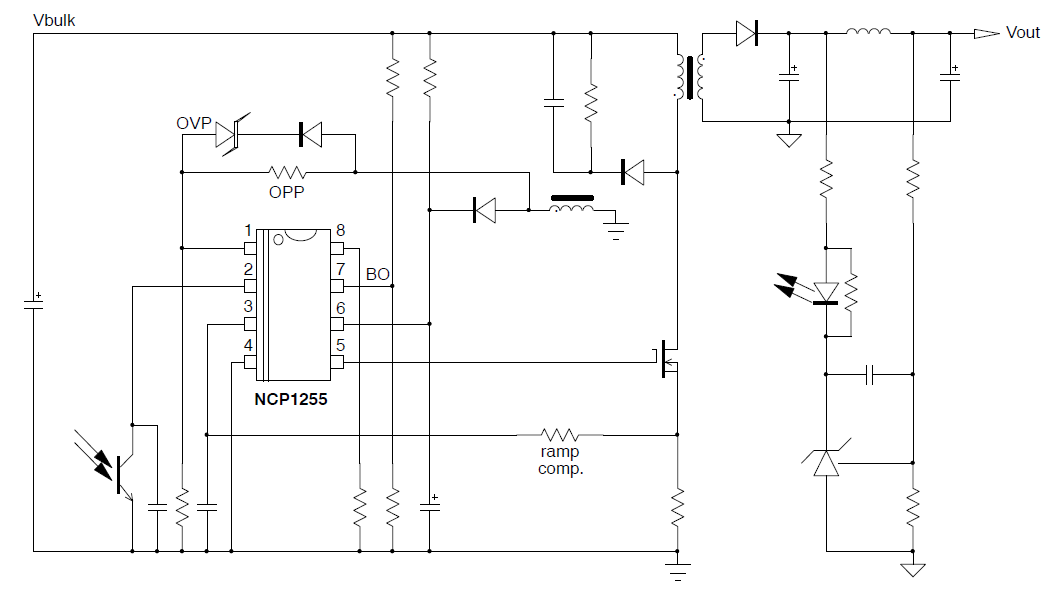

    电路图、引脚图和封装图

    在线购买

    型号制造商描述购买
    NCP1255BD65R2GONIC OFF-LINE CNTRLR PWM CM 立即购买
    NCP1255AD65R2GONIC OFF-LINE CNTRLR PWM CM 8SOIC 立即购买
    NCP1255DD65R2GONIC OFF-LINE CNTRLR PWM CM 立即购买
    NCP1255CD65R2GONICOFF-LINECNTRLRPWMCM 立即购买

    技术资料

    标题类型大小(KB)下载
    Current-Mode PWM Controller for Off-line Power SuppliesPDF354 点击下载
    NCP1255, a Controller with Peak Output Power CapabilityPDF338 点击下载
    SOIC-8 Narrow BodyPDF61 点击下载
    NCP1255_PO.PNGUNKNOW7 点击下载
    NCP1255_MS.PNGUNKNOW18 点击下载
    NCP1255_PD.PNGUNKNOW5 点击下载
    NCP1255_AD.PNGUNKNOW40 点击下载
    NCP1255PRNGEVB Bill of Materials ROHS CompliantPDF72 点击下载
