    MIC5011

    购买收藏
    High Side MOSFET Predriver



    产品信息

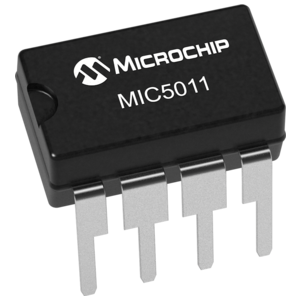

    The MIC5011 is the "minimum parts count" member of the MIC501X driver family. These ICs are designed to drive the gate of an N-channel power MOSFET above the supply rail in high-side power switch applications. The 8-pin MIC5011 is extremely easy to use, requiring only a power FET and nominal supply decoupling to implement either a high- or low-side switch.

    The MIC5011 charges a 1nF load in 60µs typical with no external components. Faster switching is achieved by adding two 1nF charge pump capacitors. Operation down to 4.75V allows the MIC5011 to drive standard MOSFETs in 5V low-side applications by boosting the gate voltage above the logic supply. In addition, multiple paralleled MOSFETs can be driven by a single MIC5011 for ultra-high current applications.

    Other members of the Micrel driver family include the MIC5013 protected 8-pin driver.

    For new designs, Micrel recommends the pin-compatible MIC5014 MOSFET driver.

      +4.75V to +32V operation

      Less than 1µA current in the "off" state

       Internal charge pump to drive the gate of an N-channel power FET above supply

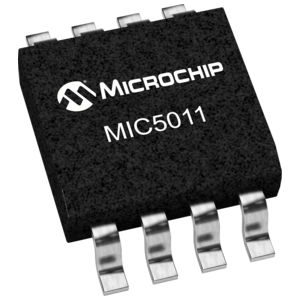

       Available in small outline SOIC packages

      Internal zener clamp for gate protection

      Minimum external parts count

      Can be used to boost drive to low-side power FETs operating on logic supplies

      25µs typical turn-on time with optional external capacitors

      Implements high- or low-side drivers

    电路图、引脚图和封装图

    在线购买

    型号制造商描述购买
    MIC5011YM-TRJSTBM06B-SURS-TF (LF)(SN) 立即购买
    MIC5011YMSII Semiconductor CorporationICVOLTDETECTOR4.2VTO-92 立即购买
    MIC5011YN-- 立即购买
