    MC100LVEL39

    购买收藏
     3.3 V ECL ÷·2/4, ÷·4/6 Clock Generation Chip

    制造商:ON

    产品信息

    The MC100LVEL39 is a low skew2/4,4/6 clock generation chip designed explicitly for low skew clock generation applications. The internal dividers are synchronous to each other, therefore, the common output edges are all precisely aligned. The device can be driven by either a differential or single-ended input signal. In addition, by using the VBB output, a sinusoidal source can be AC coupled into the device.
    The common enable (ENbar) is synchronous so that the internal dividers will only be enabled/disabled when the internal clock is already in the LOW state. This avoids any chance of generating a runt clock pulse on the internal clock when the device is enabled/disabled as can happen with an asynchronous control. An internal runt pulse could lead to losing synchronization between the internal divider stages. The internal enable flip-flop is clocked on the falling edge of the input clock, therefore, all associated specification limits are referenced to the negative edge of the clock input.
    Upon startup, the internal flip-flops will attain a random state; therefore, for systems which utilize multiple LVEL39s, the master reset (MR) input must be asserted to ensure synchronization. For systems which only use one LVEL39, the MR pin need not be exercised as the internal divider design ensures synchronization between the2/4 and the4/6 outputs of a single device.
    The V
    pin, an internally generated voltage supply, is available to this device only. For single-ended input conditions, the unused differential input is connected to V
    as a switching reference voltage. V
    may also rebias AC coupled inputs. When used, decouple V
    and V
    via a 0.01 F capacitor and limit current sourcing or sinking to 0.5 mA. When not used, V
    should be left open.
    • 50 ps Maximum Output-to-Output Skew
    • Synchronous Enable/Disable
    • Master Reset for Synchronization
    • ESD Protection: >2 KV HBM
    • The 100 Series Contains Temperature Compensation
    • PECL Mode Operating Range: V
    • = 3.0 V to 3.8 V
    • with V
    • = 0 V
    • NECL Mode Operating Range: V
    • = 0 V
    • with V
    • = -3.0 V to -3.8 V
    • Internal Input Pulldown Resistors
    • Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
    • Flammability Rating: UL-94 code V-0 @ 1/8",
    • Oxygen Index 28 to 34
    • Transistor Count = 419 devices
    • Pb-Free Packages are Available

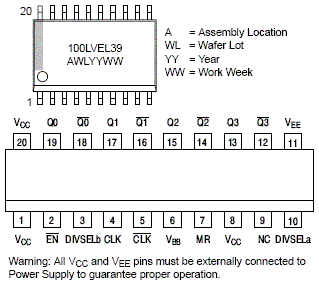

    电路图、引脚图和封装图

    在线购买

    型号制造商描述购买
    MC100LVEL39DWR2GONIC CLOCK GEN ECL 2:4 4/6 20SOIC 立即购买

    技术资料

    标题类型大小(KB)下载
    AC Characteristics of ECL DevicesPDF896 点击下载
    ECL Clock Distribution TechniquesPDF54 点击下载
    Interfacing Between LVDS and ECLPDF121 点击下载
    Designing with PECL (ECL at +5.0 V)PDF102 点击下载
    The ECL Translator GuidePDF142 点击下载
    Odd Number Divide By Counters with 50% Outputs and Synchronous ClocksPDF90 点击下载
    ECLinPS, ECLinPS Lite, ECLinPS Plus and GigaComm Marking and Ordering Information GuidePDF71 点击下载
    Storage and Handling of Drypack Surface Mount DevicePDF49 点击下载
