    LV8728MR

    购买收藏
     Stepper Motor Driver, PWM, Constant-Current Control, 1/128 step

    制造商:ON

    中文数据手册

    产品信息

    The LV8728MR is a PWM current-controlled micro step stepper motor driver. This driver can perform eight excitation modes from Full step to 1/128 step and can drive simply by the CLK input. LV8728MR is suitable for various application to have an abundant excitation mode. And overcurrent protection, thermal shutdown, and low-voltage protection circuit is built-in, it is possible to design safely as customer's application.

    • Output on-resistance (upper side: 0.3Ω ; lower side: 0.25Ω ; total of upper and lower: 0.55Ω ; Ta = 25°C, IO = 2.0A)

    • Full, Half, 1/4, 1/8, 1/16, 1/32, 1/64, 1/128 step excitation mode areselectable

    • Advance the excitation step with the only step signal input

    • Over-current protection circuit

    • Thermal shutdown circuit

    • Input pull down resistance

    • With reset pin and enable pin.

    • Available forward reverse control

    • Single-channel PWM current control stepper motor driver

    • BiCDMOS process IC

    • IO max = 2.0A

    优势特点

    • 单通道 PWM 电流控制步进电机驱动器

    • BiCDMOS 过程 IC

    • 输出导通电阻

      • 上侧:0.3Ω

      • 下侧:0.25Ω

      • 总计:0.55Ω;Ta=25C,IO=2.0A

    • 全步、半步、1/4、1/8、1/16、1/64、1/128 步激发模式可供选择

    • 仅通过步骤信号输入即可提前激发

    • 2.0A IO(最大值)

    • 过流保护电路

    • 热关断电路

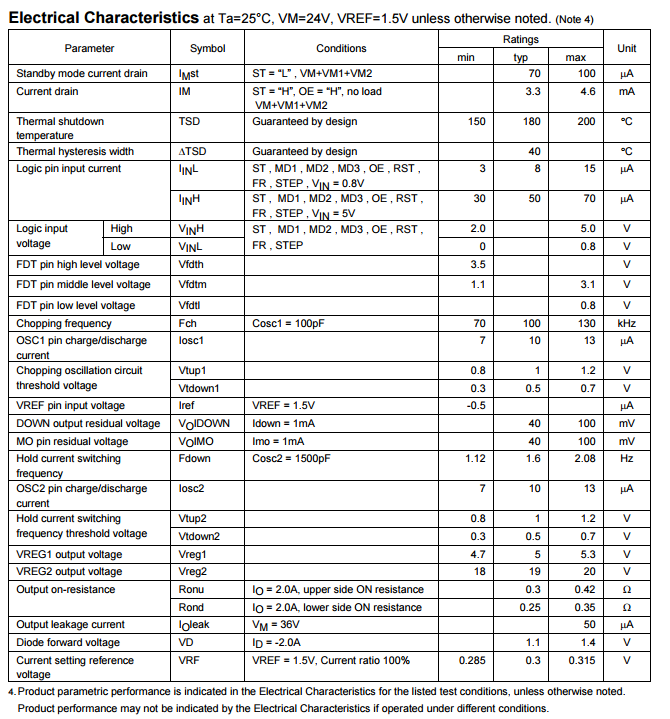

    规格参数


    电路图、引脚图和封装图

    在线购买

    型号制造商描述购买
    LV8728MR-AHON双极性 电机驱动器 BiCDMOS 30-SOIC/MFP30KR 0~5V 立即购买

    技术资料

    标题类型大小(KB)下载
    SOIC30 W / MFP30KR (375 mil)PDF55 点击下载
    Stepper Motor Driver, PWM, Constant-Current Control, 1/128 stepPDF808 点击下载
    Application Circuit ExampleUNKNOW77 点击下载
