    BQ27541-G1

    购买收藏
    具有集成 LDO 的电池组端 Impedance Track 电池电量监测

    制造商:TI

    产品信息

    The Texas Instruments bq27541-G1 Li-Ion battery fuel gauge is a microcontroller peripheral that provides fuel gauging for single-cell Li-Ion battery packs. The device requires little system microcontroller firmware development for accurate battery fuel gauging. The bq27541-G1 resides within the battery pack or on the system’s main-board with an embedded battery (nonremovable).

    The bq27541-G1 uses the patented Impedance Track™ algorithm for fuel gauging, and provides information such as remaining battery capacity (mAh), state-of-charge (%), run-time to empty (min.), battery voltage (mV), and temperature (°C). It also provides detections for internal short or tab disconnection events.

    The bq27541-G1 also features integrated support for secure battery pack authentication, using the SHA-1/HMAC authentication algorithm


    优势特点

    • Battery Fuel Gauge for 1-Series (1sXp) Li-Ion Applications up to 32Ahr capacity

    • Microcontroller Peripheral Provides:

      • Accurate Battery Fuel Gauging supports up to 32Ahr

      • Internal or External Temperature Sensor for Battery Temperature Reporting

      • SHA-1/HMAC Authentication

      • Lifetime Data Logging

      • 64 Bytes of Non-Volatile Scratch Pad FLASH

    • Battery Fuel Gauging Based on Patented Impedance Track Technology

      • Models Battery Discharge Curve for Accurate Time-To-Empty Predictions

      • Automatically Adjusts for Battery Aging, Battery Self-Discharge,
        and Temperature/Rate Inefficiencies

      • Low-Value Sense Resistor (5mΩ to 20mΩ)

    • Advanced Fuel Gauging Features

      • Internal Short Detection

      • Tab Disconnection Detection

    • HDQ and I2C Interface Formats for Communication With Host System

    • Small 12-pin 2.5 mm × 4 mm SON Package

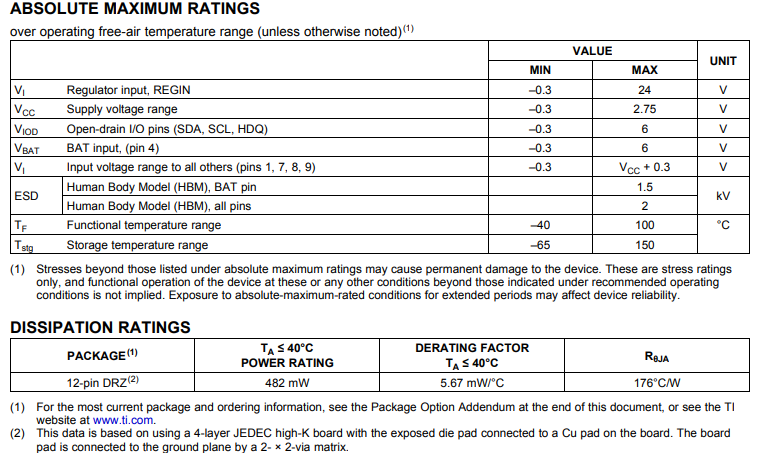

    规格参数


    电路图、引脚图和封装图

    在线购买

    型号制造商描述购买
    BQ27541DRZT-G1TIIC BATT FUEL GAUGE LI-ION 12SON 立即购买
    BQ27542DRZT-G1TIIC BATT FUEL GAUGE LI-ION 12SON 立即购买
    BQ27542DRZR-G1TIIC BATT FUEL GAUGE LI-ION 12SON 立即购买
    BQ27541DRZR-G1TIIC BATT FUEL GAUGE LI-ION 12SON 立即购买

    技术资料

    标题类型大小(KB)下载
    Host System Calibration MethodPDF140 点击下载
    Using I2(TM) Communication With the bq275xx Series of Fuel GaugesPDF53 点击下载
    bq27541-v200 to bq27541-G1 CHANGE LIST PDF43 点击下载
    Configuring the bq2754x-G1 Data FlashPDF1060 点击下载
    Thermistor Selection Guide for Texas InstrumentsPDF564 点击下载
    Why I cannot have a successful learning cyclePDF46 点击下载
    LITHIUM-ION BATTERY MONITOR AND SECONDARY PROTECTION IC FOR EV & HEV APPLICATIONPDF188 点击下载
    Going to Production With the bq2754xPDF581 点击下载
