    NCP1254

    购买收藏
     PWM Controller, Current Mode, for Offline Power Supplies

    制造商:ON

    中文数据手册

    产品信息

    The NCP1254 is a highly integrated PWM controller capable of delivering a rugged and high performance offline power supply in a TSOP-6 package. With a supply range up to 35 V, the controller hosts a jittered 65-kHz switching circuitry operated in peak current mode control. When the power on the secondary side starts to decrease, the controller automatically folds back its switching frequency down to a minimum level of 26 kHz. As the power further goes down, the part enters skip cycle while freezing the peak current setpoint.
    To help building rugged converters, the controller features several key protective features: a non-dissipative Over Power Protection for a constant maximum output current regardless of the input voltage, two latched over voltage protection inputs - either through a dedicated pin or via the Vcc input and a dual-level auto-recover/latched overload/short-circuit timer.
    The controller architecture is designed to authorize a transient peak power excursion when the current setpoint hits the limit. At this point, the switching frequency is increased form 65 kHz to 130 kHz until the peak event disappears. The timer duration is then modulated as the converter crosses a peak power excursion mode (long) or undergoes a short circuit (short).
    • 65kHz Fixed Frequency Current Mode control with 130 kHz frequency excursion
    • Internal and adjustable Over Power Protection (OPP) circuit
    • Frequency Foldback down to 26 kHz and Skip-cycle in light load conditions
    • Timer-based Auto-recovery Overload/Short-circuit protection with 100% to 25% timer reduction for short-circuit faults
    • Frequency Jittering in Normal and Frequency Foldback Modes
    • Latch Input
    • Double Vcc hiccup in fault mode

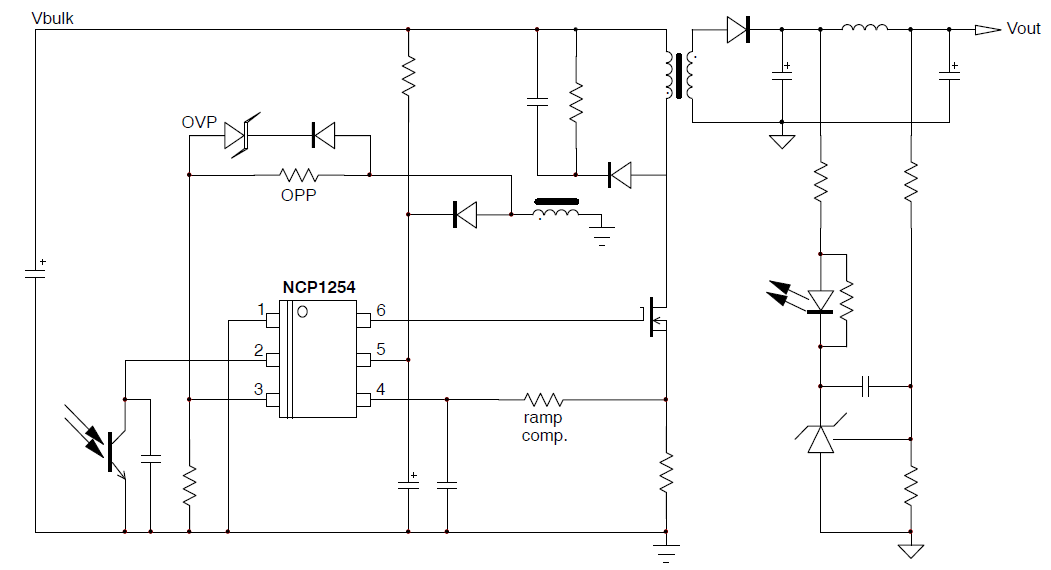

    电路图、引脚图和封装图

    在线购买

    型号制造商描述购买
    NCP1254ASN65T1GONIC OFF-LINE CNTRLR PWM CM 立即购买
    NCP1254BSN65T1GONIC REG CTRLR FLYBK ISO PWM 立即购买

    技术资料

    标题类型大小(KB)下载
    Current-Mode PWM Controller for Off-line Power SuppliesPDF370 点击下载
    TSOP-6PDF62 点击下载
    NCP1254_PO.PNGUNKNOW9 点击下载
    NCP1254_MS.PNGUNKNOW17 点击下载
    NCP1254_PD.PNGUNKNOW5 点击下载
    NCP1254_AD.PNGUNKNOW38 点击下载
    Switch Mode: High Efficiency Switching Regulators for Consumer Electronics UNKNOW136 点击下载
